Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport

  • 1
  • 2

Cooling Capacity(-18℃) : 2350W

Evaporator : Inner grooved copper tube&aluminum Fin

Cooling Capacity(0℃) : 5100W

Condenser : Parallel Flow Condenser

Price : negotiation

Temperature Range : -25°C To +25°C

Brand Name : Yinhuasheng/OEM

Model Number : HT-500

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1SET

Payment Terms : TT/LC

Supply Ability : 1000 sets per month

Packaging Details : wooden cage/cartoon

Compressor Mode : GY16

Compressor Brand : Guangyu

Compressor Displacement : 163 CC

Outside Temperature : 30°C To 50 °C

Application Box Volume : ≤18 m3

Delivery Time : 20

model : HT-500

Contact Now

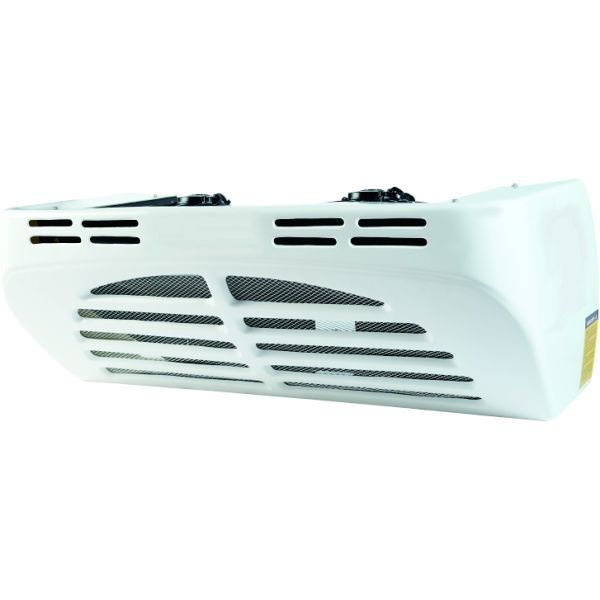

HT-500 Vehicle Refrigeration Unit For Cold Chain Transport
Product Overview

Professional refrigeration unit designed for trucks, lorries, and vans with cargo volumes up to 18m³. Ideal for cold chain transport applications requiring reliable temperature control.

Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser - lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and enhanced coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • High and low pressure switch safety protection
  • Large cooling capacity with reliable performance
Product Images
Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport
Technical Specifications
Unit Model HT-500
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity 5100 W at 0℃
2350 W at -18℃
Compressor Model: GY16
Displacement: 163 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight & Dimensions Evaporator: 26 KG (1010×640×250 mm)
Condenser: 35 KG (1170×520×415 mm)
Drive Model Non-independent engine driven
Important Notes
  • The applicable compartment volume is for reference only. Actual performance depends on compartment volume, insulation quality, environmental temperature, and transported goods.
  • Compressor operates at 2000 rpm with selectable 12V/24V voltage options.
