HT-1100 Engine-Driven Refrigeration Unit for Large Refrigerated Trucks with Direct Engine Drive and 52m³ Box Volume Capacity

  • 1
  • 2

Brand Name : YINHUASHENG

Model Number : HT-1100

Certification : CE/ISO

Place of Origin : CHINA

MOQ : 1PCS

Price : negotiation

Payment Terms : L/C,T/T

Supply Ability : 1000

Delivery Time : 20

Packaging Details : WOODEN CAGE/CARTOON

Unit Model : HT-1100

Temperature Range : -25℃ ~ +25℃

Applicable Box Volume : ≤52m³

Lubricating Oil : PAG 68

Safety Protection : High & low pressure switch

Contact Now

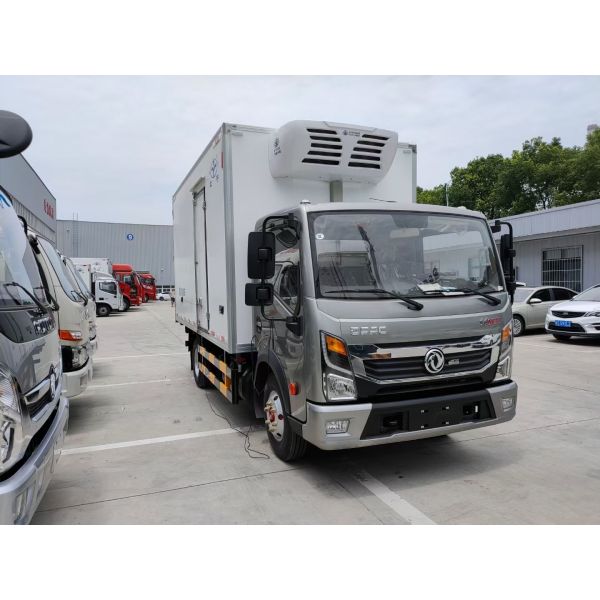

HT-1100 Engine-Driven Refrigeration Unit for Large Refrigerated Trucks
Product Overview

The HT-1100 is a high-capacity engine-driven refrigeration unit designed for large refrigerated trucks up to 52m³ box volume. Powered directly by the vehicle engine, it delivers strong, stable cooling performance for long-distance cold chain transportation. With reliable structure, low operating cost, easy installation and flexible OEM service, it has become a preferred solution for logistics and cold chain enterprises.

Product Highlights
  • Direct engine drive, stable power supply
  • Designed for large reefer trucks up to 52m³
  • Ideal for chilled/frozen food, medicine, fruits, vegetables, seafood, ice and more
  • Low operational cost and low maintenance cost
  • Easy installation and compact layout
  • Excellent performance for long-distance transportation
  • OEM & customized service available
Key Features
  • Eco-friendly refrigerant R404A (R134a system optional)
  • Corrosion-resistant high-strength FRP housing for durability
  • Aluminum fin parallel flow condenser with high heat exchange efficiency
  • Inner grooved copper tube evaporator with strong cooling and large airflow
  • Dedicated high-reliability compressor for R404A systems
  • Digital display control panel for simple and intuitive operation
  • HP and LP safety protection switches
  • Large cooling capacity and stable performance under various conditions
Application Scenarios

HT-1100 is widely used for long-distance transportation of temperature-sensitive goods:

  • Chilled & frozen food
  • Fresh fruits and vegetables
  • Seafood and aquatic products
  • Medical supplies and vaccines
  • Ice products and fresh flowers
  • Other goods requiring stable low-temperature control
Technical Parameters
Item Specification
Unit Model HT-1100
Temperature Range -25℃ ~ +25℃
Applicable Box Volume ≤52m³
Cooling Capacity @0℃/+30℃ 8425 W
Cooling Capacity @-18℃/+30℃ 5365 W
Compressor Model QP31 / JS32
Compressor Displacement 313 / 328 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 3 PCS
Condenser Material Parallel flow condenser
Condenser Fans 4 PCS
Refrigerant R404a
Refrigerant Charge 4.0 KG
Temperature Control Electronic digital display
Safety Protection High & low pressure switch
Defrosting Automatic hot gas defrost
Evaporator Weight 41 KG
Condenser Weight 63 KG
Evaporator Dimensions 1250*680*360 mm
Condenser Dimensions 2130*385*360 mm
Drive Type Non-independent engine driven
Why Choose HUASHENGTHERMO HT-1100?
  • High cooling capacity for large 52m³ trucks
  • Stable engine-driven system, no speed influence
  • Durable FRP casing and copper tube evaporator
  • Easy to install and maintain
  • Low long-term operating cost
  • Professional OEM customization supported
  • Strict factory inspection and reliable quality
Manufacturer Support
  • Direct factory supply with competitive price
  • Full quality control before shipment
  • Professional OEM & ODM service
  • Long-term technical support
  • Fast spare parts supply
  • International certification available upon request
